Knew Concepts Titanium Soldering Strips (Clamps)

What are they?

Inspired by British Master Goldsmith James Miller, these titanium strips can be easily bent into a wide range of specialized custom clamps for jeweler’s hard soldering operations.

• Video review of the Titanium Soldering Clamp Set, by John Ross of Cooksongold.

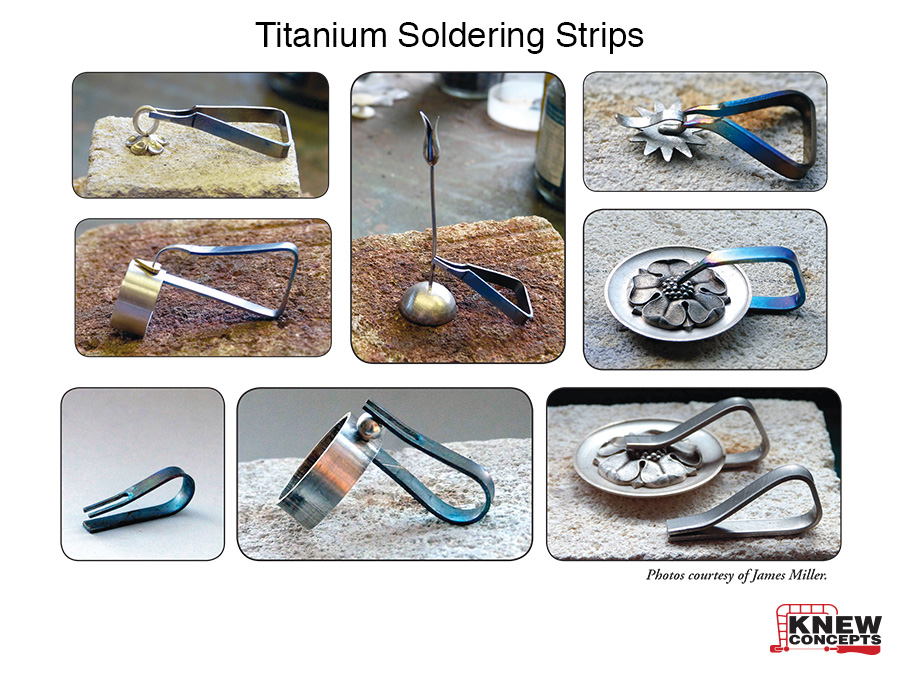

• See images of how they can be used.

Titanium has several advantages over traditional steel clamps when it comes to soldering. Solder doesn’t stick to it. Enamel doesn’t stick either. It stays strong when red hot. It doesn’t erode and flake away at heat, so your clamp tips can be smaller. Most importantly, titanium doesn’t transfer heat nearly as quickly as steel clamps, so it interferes with nearby joints less than steel clamps do.

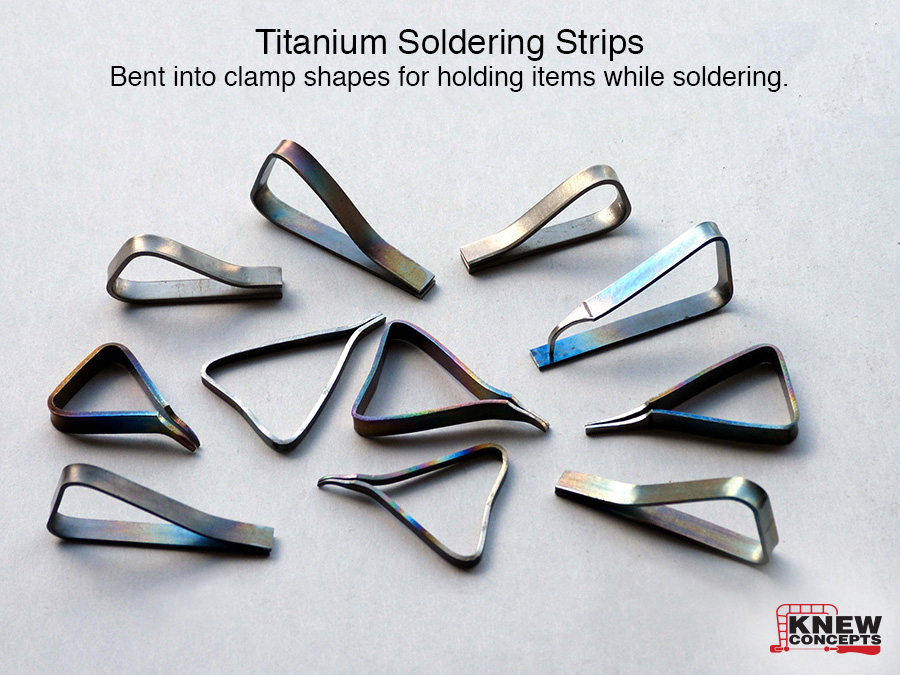

These strips—made in the USA, are sold in a pack of 10, annealed “blanks” as straight 4" strips, to allow you to bend your own ideal clamp designs. Each soldering situation is different, and while there are a few basic designs that we illustrate in the how to bend and shape clamp instructions, every jeweler is different, and each solders in their own unique way, and will need clamps customized for their own personal style, or unique need. The titanium strips are fully annealed, and can be bent and filed to suit in minutes.

To date, we’ve found several uses for them:

• holding ear wires during soldering
• holding bails and jump rings
• re-setting sweat soldered panels that had warped during the first soldering
• clamping several items together during soldering
• soldering hemispheres into a full sphere
• holding spheres onto ring shanks...

The list will go on.

Titanium Soldering Strip Instructions

Video Instructions

• Basic overview of forming the Knew Concepts Titanium Strips into jewelry soldering clamps.
• Helping you Make and Solder Jewelry with the Knew Concepts Titanium Soldering Strips, by Andrew Berry.

Downloadable Instructions

• Download the instructions on how to bend and shape the strips.
